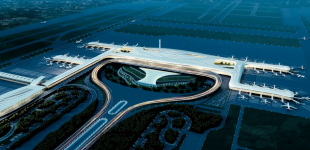

RFID-Based Checked Baggage Process Tracking: Technology, Deployment and Application at Wuhan Tianhe Airport

In modern aviation, checked baggage handling is one of the most demanding operational challenges. Every day, airports process thousands of bags through check-in counters, security screening, automated sorters, conveyor networks, ground transport vehicles and aircraft cargo holds. At each step, the risk of misrouting, misloading or losing a bag creates cost pressure, passenger dissatisfaction and potential flight delays. IATA Resolution 753, which requires airlines to track passenger baggage at key handling points—check-in, aircraft loading, transfer and arrival—has made robust tracking technology a business necessity, not an option.

Wuhan Tianhe Airport (WUH), a major aviation hub in central China, began deploying RFID technology for checked baggage tracking as early as 2008. Over more than a decade, the airport has evolved its system through three generations: first, reusable IC-type RFID cards; then, disposable UHF RFID luggage tags; and finally, a comprehensive full-process baggage tracking platform that covers every stage of a bag’s journey—from the check-in counter to the aircraft cargo hold and across to the arrival carousel.

This article provides a technical analysis of the Wuhan Tianhe Airport RFID baggage tracking system, written from an RFID manufacturer’s perspective. It covers the system’s evolution, architecture, process design, deployment considerations and future direction, offering practical guidance for airport operators, system integrators, airlines and industry professionals.

1. Background: The Early Use of RFID Tracking at Wuhan Tianhe Airport

In 2008, Wuhan Tianhe Airport became the first comparable domestic airport in China to adopt RFID tracking technology for checked baggage. The initial system achieved a 99% correct sorting rate during the check-in and sorting process—a significant improvement over the barcode-only systems that were standard at the time. The early platform relied on IC-type RFID cards designed to be written and read repeatedly. Under ideal environmental conditions (approximately 22°C), each card supported at least 100,000 write cycles, unlimited read operations and a data retention period of ten years.

Reusability was intended to reduce operational costs. However, real-world deployment exposed fundamental weaknesses in the reusable-card approach.

1.1 Mechanical Damage and Tag Failure

RFID cards attached to baggage were subjected to constant physical pressure, squeezing and impact from suitcases during handling and transport. The cards bent, flexed and deformed, breaking either the chip or its antenna connection. When this occurred, the RFID reading workstations could no longer extract luggage information from the tag, and the bag effectively became invisible to the sorting system. According to Wuhan Airport’s own statistics, the IC card RFID damage rate reached 15% between 2008 and 2013—an unacceptably high failure rate for a high-volume operation.

1.2 Lack of Chip Testing and Quality Control

In the early deployment phase, Wuhan Airport did not have dedicated RFID chip testing equipment or structured management procedures. This meant that RFID chips that did not meet the airport’s performance standards entered the use chain without being detected. These non-compliant tags caused intermittent abnormal shutdowns of RFID reading workstations, directly disrupting baggage sorting operations and requiring manual intervention to resolve.

1.3 Human Error in Data Writing

Because check-in staff had to write baggage information onto the IC cards manually, operator mistakes—such as skipping the write step or entering incorrect data—resulted in tags that were blank, incomplete or wrongly encoded. These errors propagated downstream, causing incorrect baggage sorting and creating additional workload for ground personnel who had to track down misrouted bags.

2. Improvement Measures: The Shift to Disposable RFID Luggage Tags

As RFID technology matured and production volumes increased, the cost of RFID chips dropped dramatically. This shift in the economics of RFID allowed Wuhan Airport to abandon the reusable-card model and adopt a far more reliable solution: disposable RFID luggage tags with the chip directly implanted inside a flexible, printable tag structure. This new format eliminated the durability problems of IC cards, simplified the check-in workflow and reduced the impact of human error on information writing.

Disposable luggage tags of this type are a classic example of custom RFID sticker and tag manufacturing, where inlay type, substrate material, adhesive strength and printable surface are all configured to match the specific application environment.

By June 2014, all domestic check-in counters at Wuhan Tianhe Airport had fully switched to disposable RFID luggage tags. The correct baggage identification rate increased from 99% to 99.8%, validating the new approach.

2.1 Designing the T3 Terminal Full-Process Tracking System

In 2015, while the new T3 terminal baggage system was still in its design phase, Wuhan Airport’s construction and operational maintenance departments began studying a full-process baggage tracking architecture based on RFID technology. The objective was ambitious: to track every bag from the passenger check-in counter all the way to the aircraft cargo warehouse—and in the long term, to make that data available to airlines, ground handlers and passengers.

In 2017, the baggage tracking system requirements were formally integrated into the construction of the T3 terminal baggage system. In 2019, the airport launched construction of the full-process baggage system. The deployment plan included RFID electronic tags, RFID readers, barcode scanning equipment, fixed and handheld data collection terminals, and a cloud-based data aggregation platform. Data collection points were placed along both the outbound (departure) baggage delivery flow and the inbound (arrival) baggage flow. The system collects data at each link, confirms baggage identity quickly, and ensures that bags are sorted and routed correctly.

All collected data is fed to a cloud data platform that provides baggage security personnel with real-time monitoring, message alerting and statistical analysis. The platform helps identify error-prone links and reduce abnormal baggage events. Passengers benefit by being able to check the location of their baggage in real time, which significantly improves the service experience.

3. Technical Architecture and Expected Goals

Wuhan Tianhe Airport’s full-process baggage tracking system is designed to record baggage information from the departure passenger’s check-in counter to the destination airport’s baggage claim carousel. RFID tracking technology is applied at every critical node. The real-time data collection complies with the baggage tracking node requirements specified by IATA Resolution 753, while also enabling data sharing among all stakeholders, including airlines, ground service companies and airport operators.

3.1 Real-Time Path Recording

The system records real-time path information across all key scenarios: counter check-in baggage tag writing, tag reading at sortation, chute confirmation, baggage loading confirmation and aircraft cargo warehouse confirmation. Each event is time-stamped and indexed, producing a complete digital journey for every bag.

3.2 100% Path Tracking of Outbound Baggage

With fixed readers, portable readers and wearable devices deployed across the baggage flow, the system is designed to achieve 100% path tracking of outbound baggage. Each bag can be located in real time, minimizing the risk of misloading, missed loading and wrong loading—the three most cost-intensive failure modes in airport baggage operations.

3.3 Automated Sorting and Labor Efficiency

RFID-based tracking enables automatic sorting throughout the baggage process. Because unattended readers perform the identification work, the physical workload of sorting personnel is reduced, and the risk of human error in sorting decisions is significantly lowered.

3.4 Real-Time Alerts for Special Baggage

Special baggage—including VIP bags, fragile items, oversized loads, gate-checked pieces and time-critical connections—triggers real-time alerts as it passes read points. Sorting personnel can respond immediately, ensuring that special bags are handled according to their specific requirements.

3.5 Automated Baggage Reports After Flight Closure

Once a flight closes, the system automatically generates a complete baggage data report. This eliminates the possibility of data transcription errors caused by manual statistics and ensures that the final bag count is accurate for load control and airline reconciliation.

3.6 Baggage Inquiry Services for Airlines and Passengers

Based on the full-process tracking data, the airport can provide real-time baggage routing information to airlines and passengers. This transparency improves the convenience and reliability of baggage query services and helps build passenger confidence.

3.7 Baggage Detection Function

In a busy baggage hall with thousands of bags in circulation, locating a specific bag manually is nearly impossible. The system’s baggage detection function uses the RFID infrastructure to quickly identify a target bag among many, using handheld readers and signal strength indicators to narrow down its precise location.

3.8 Unified Tracking Data Platform

The system is built on an interconnected baggage tracking data platform with a unified RFID data message standard. Airlines and airport ground service companies receive standardised baggage data, enabling cross-party sharing and coordinated operations.

4. Process Design: Data Collection Points Across the Baggage Journey

The effectiveness of any RFID tracking system depends entirely on the placement and reliability of its data collection points. Wuhan Tianhe Airport’s design divides the baggage journey into outbound and inbound flows, each with its own set of control points.

4.1 Outbound Baggage Delivery Process

4.1.1 Check-In and Consignment

At the first link—the check-in counter—the system captures a baggage image, binds the baggage to the passenger’s itinerary, and records special baggage characteristics (VIP, oversized, off-gauge, gate check-in, etc.). All 120 baggage check-in counters in the T3 terminal are equipped with RFID luggage tag printers and disposable flexible RFID electronic tags.

During passenger check-in, the printer performs two actions simultaneously: it prints the visual barcode and routing information on the tag’s surface, and it writes the same data into the RFID chip embedded inside the tag. This unified print-and-encode step removes a separate operation from the agent’s workflow and greatly reduces the chance of encoding errors.

4.1.2 Safety Inspection

The T3 baggage sorting system covers data collection for level 1 to level 4 security screening checkpoints automatically. The level 5 security checkpoint—where manually screened bags are returned to the system—has been gradually equipped with automatic baggage information collection points.

Beyond security, the baggage system includes 48 RFID code-reading workstations at other important tracking nodes, including AT (automated transfer) positions, CT (container transport) positions and sorter induction lines. These workstations provide full-route tracking of baggage inside the sorting area. Because the workstations are positioned at junctions and transfer points, they capture the direction of travel and the timing of every bag, even when the bag changes routing or is redirected.

4.1.3 Luggage Loading

At the end of each sorting chute, the system binds the information of the tractor and the flatbed trailer using a handheld RFID terminal. The system then records the loading baggage information by reading the luggage RFID tags. This stage contains two distinct information collection points:

Baggage Reconfirmation Point
The baggage reconfirmation system is an additional confirmation link installed at the sorting exit of the automatic baggage sorting system. Its purpose is to prevent wrongly delivered or lost baggage from entering the loading process. An RFID antenna installed at the bottom of the chute automatically reads the tag of each bag as the sorter picks it up. The information system compares the read tag data with the flight currently allocated to that chute.

• If the comparison succeeds, the control antenna lights up green and emits a one-second buzzer. The system records the bag’s position on the loaded cart, and the chute information screen displays the loaded barcode.
• If the comparison fails, the control antenna lights up red and emits a three-second buzzer. The system records the position of the mis-sorted bag, and the chute information screen displays a barcode error alert.

This real-time validation dramatically reduces the probability that a mis-sorted bag is loaded onto the wrong vehicle and sent to the wrong aircraft.

Trailer and Flatbed Binding Point
After reconfirmation, sorting personnel use a wireless handheld terminal running a custom APP to scan both the flatbed’s durable RFID metal tag and each bag’s RFID tag. This binds the luggage to the trailer, creating a digital manifest of all bags on the vehicle. The binding data becomes the foundation for vehicle-level tracking throughout the apron.

4.1.4 Baggage Leaving the Sorting Area

RFID antennas installed at the exit of the sorting area automatically read the tractor and flatbed tags as baggage vehicles depart. The system records the departure timestamp and the complete list of bags bound to the vehicle, closing the sorting-area stage of the tracking chain.

4.1.5 Aircraft Loading

In the final outbound step, ground crew members use wearable RFID reading vests to capture baggage tag data while working in the aircraft cargo hold. The system uses the radio frequency signal strength to quickly locate each bag within the hold. This hands-free approach accelerates loading, reduces manual scanning errors and provides positive confirmation that each bag has boarded the correct flight.

4.2 Inbound Baggage Process (Arrival Baggage)

4.2.1 Baggage Unloading from the Aircraft

Under the aircraft, sorting personnel use wearable devices with code-scanning gloves to capture cabin baggage information as it is unloaded. The bags are simultaneously bound to the flatbed trailer using the same handheld terminal workflow used on the departure side. This creates a digital record of what has arrived on each flight.

4.2.2 Entry into the Arrival Sorting Area

RFID antennas installed at the entrance of the arrival sorting area read the tractor and flatbed tags as vehicles enter, recording the arrival time and automatically binding the incoming trailer to the warehouse management system.

4.2.3 Baggage Delivery to the Carousel

In the baggage arrival sorting area, sorting personnel use wearable readers to record each bag as it is dropped off onto the designated carousel. This event marks the moment at which the bag becomes available for passenger collection, updating the passenger-facing tracking system in real time.

4.2.4 Baggage Visualization

Cameras installed at the baggage drop-off area transmit live video to monitors positioned above the passenger pick-up carousel. While waiting for their bags, passengers can watch the unloading and delivery process to verify that their baggage is being handled correctly. This transparency improves passenger confidence and reduces tension during peak arrival periods.

4.2.5 Baggage Claim Verification

When the bag reaches the pick-up surface of the carousel, airport staff can use handheld terminals to quickly verify the claimed bag against the passenger’s criterion. This step is particularly useful for high-value bags, restricted items or bags flagged by customs or agriculture inspection, as it prevents unauthorised collection.

5. Deployment Considerations for Airport RFID Baggage Tracking Systems

The experience at Wuhan Tianhe Airport provides a valuable reference for airports planning to deploy or upgrade RFID baggage tracking. From a manufacturer’s perspective, several technical and operational factors must be considered carefully.

5.1 Tag Selection: Form Factor, Substrate and Performance

Baggage tags must survive one of the harshest mechanical environments in the transport industry. Tags are crushed under other bags, bent around hand grips, pulled by straps and exposed to temperature swings between the terminal and the apron. Flexible PET substrates with a printable top coat are preferred over rigid cards. The antenna geometry must be designed to tolerate bending without fracturing. A good supplier will offer custom RFID tag solutions with different inlays, adhesives and laminates so that the airport can verify which combination performs best in live conveyor tests.

5.2 Reader Placement and Read-Zone Engineering

RFID read accuracy is only as good as the read-zone design. Metal conveyor frames, electrical noise and reflective surfaces can shrink read ranges and cause tag misreads. The positioning of antennas at chute bottoms, portal exits and induction lines must be carefully planned, with the read field confined to the intended area. Selecting RFID readers with adjustable output power, multiple antenna ports and configurable read modes allows integrators to tune each read zone during commissioning.

5.3 Quality Control and Tag Screening

Wuhan Airport’s early experience with non-compliant chips demonstrates why quality control is non-negotiable. Airports should require their RFID tag suppliers to provide full production testing and verify which frequencies and chips are acceptable. A strong relationship with a manufacturer who performs in-house chip validation and tag performance audits is essential to avoid the type of failure that Wuhan experienced with its 15% IC card damage rate.

5.4 System Integration and Data Standards

RFID baggage tracking does not operate as a standalone system. It must integrate with the airport’s departure control system (DCS), baggage handling system (BHS) controllers, security screening platforms and airline baggage applications. The message format must be standardised—ideally aligned with IATA 753—and delivered through an API layer to the cloud platform. Wuhan Airport’s decision to build a unified data platform simplified this integration and allowed all 120 check-in counters, 48 reading workstations, handheld terminals and wearable devices to share a single data infrastructure.

5.5 Wearable RFID Devices

Wuhan Airport’s use of RFID reading vests and code-scanning gloves represents a growing trend in airport ground operations. These devices allow personnel to scan bags continuously while keeping both hands free for lifting and positioning. The working principle is similar to how RFID tags on clothes enable the tracking of individual garments; here, the readers themselves are the wearable element. When selecting wearable readers, airports must evaluate battery life, ergonomics, antenna direction and durability against rain and mechanical shock.

5.6 Choosing the Proper Chip and Memory Configuration

Not all RFID chips are equal. Chips differ in sensitivity, read speed, memory size and write endurance. For UHF baggage tags, the chip must be able to store flight, destination and passenger data while maintaining a reliable read sensitivity of at least −18 dBm or better. For adjacent applications—such as NFC-based staff access or passenger identity verification—choosing between common chips such as NXP’s NTAG213 and NTAG215 requires careful evaluation of memory size and read performance. A practical NTAG213 vs NTAG215 comparison shows how chip selection decisions affect real-world performance in RFID deployments.

6. Implementation Effect and Operational Benefits

The full-process baggage tracking project at Wuhan Tianhe Airport is being delivered in planned phases. The baggage sorting system, baggage loading functions and arrival baggage visualisation modules have already been completed and put into live operation. Data collection for baggage trailer entry and exit, cabin baggage loading and unloading, and arrival baggage delivery is being rolled out steadily across the remaining gate positions.

Preliminary data from the completed modules shows that the baggage tracking rate has reached design expectations. Tracking coverage now extends from the check-in counter all the way to the baggage trailer on the apron. Airlines’ sorting personnel can query the exact path of baggage in real time, which supports faster baggage loading, more efficient baggage search, fewer misloaded bags and a lower probability of missing luggage. These improvements translate directly into a better travel experience for passengers and lower operational costs for airlines.

7. Industry Insights: RFID Applications Beyond Airport Baggage

The architecture used at Wuhan Tianhe Airport—durable tags, strategically placed readers, layered data collection points and a centralised data platform—is equally applicable to other industries. Airports, retailers, logistics companies and manufacturers all face the same fundamental challenge: knowing where an item is at any given moment.

7.1 Retail and Apparel

The retail industry has adopted RFID for item-level inventory tracking, loss prevention and omnichannel fulfilment. The tags used in apparel are mechanically different from airport baggage tags, but the engineering principles are identical. In both cases, the tag must be reliably read at high speed, survive the item’s environment and be produced at a cost that fits the business model. Understanding how RFID tags are applied to clothing provides useful perspective on how tag form factors are adapted to different goods.

7.2 Logistics and Supply Chain

Third-party logistics providers operate parcel sortation systems that are conceptually identical to airport baggage sorters. Portal readers at dock doors, handheld readers for loading confirmation and a cloud-based track-and-trace platform are now the standard pattern in modern distribution centres. The baggage reconfirmation concept used at Wuhan Airport is directly transferable to a warehouse where a worker must verify that parcels on a pallet belong to a specific outbound route.

7.3 Manufacturing and Asset Management

In manufacturing, production parts are frequently bound to carriers, pallets or trays—exactly as Wuhan Airport binds baggage to trailers. The hierarchical binding approach (multiple bags to one trailer) is a proven best practice for industrial RFID deployments, reducing the number of read points required while maintaining item-level traceability.

8. Future Planning: Toward the Smart Airport

In the next phase of its programme, Wuhan Tianhe Airport will open up data linkages across all handling stages, achieve true end-to-end baggage tracking data interconnection and establish a comprehensive baggage information service cloud platform. This platform will support future passenger baggage tracking queries, inter-airline baggage transfer coordination and cross-airport baggage tracking in multi-airport city systems.

In addition to the data infrastructure, the airport will:

• Optimise its existing baggage collaborative operation model through data-driven analysis;
• Define the business logic for collaborative decision-making among airlines, ground handlers and the airport authority;
• Establish unified airport collaborative operation data standards and technical specifications;
• Enable ground service companies and airlines to use cloud-platform data mining tools to optimise their own processes, improving their service quality and the airport’s overall baggage service level.

As the Internet of Things continues to expand, RFID will find significantly broader applications in civil aviation—in passenger services, aircraft equipment maintenance, ground support vehicle management, and safety and security protection. Wuhan Tianhe Airport has committed to building a “smart airport,” and RFID will be a foundational technology in that transformation. Future airport infrastructure will rely on an ecosystem of industrial RFID readers and tags that work together across every operational area.

9. Frequently Asked Questions (FAQ)

Q1: What is RFID baggage tracking and how does it work?

RFID baggage tracking uses radio frequency identification tags—normally UHF RFID tags embedded in disposable luggage labels—to identify and track bags automatically. Each tag contains a chip with a unique identifier that is linked to flight and passenger data at check-in. Fixed RFID readers and antennas along the baggage handling route capture the tag ID automatically at each checkpoint, and a central platform records each event to build the bag’s complete movement history.

Q2: What is the difference between barcode-based and RFID-based baggage tracking?

Barcode scanning requires a clear line of sight to the printed barcode. If the label is folded, wet, dirty or obscured by another bag, the scanner cannot read it. RFID uses radio waves, which can pass through many materials, so the tag is readable even when the bag is stacked or the label is partially covered. RFID readers also capture multiple tags in a single pass, enabling high-speed conveyor reading. In practice, RFID identification accuracy for baggage reaches 99.8% or higher, while barcode-only systems typically achieve only 95–97%.

Q3: Which RFID frequency is used for airport baggage tracking?

The vast majority of modern baggage tracking systems use UHF (ultra-high frequency) RFID, typically in the 860–960 MHz range. UHF supports read distances of several meters, which allows antennas to be placed above conveyors, beside chutes and at vehicle exits. UHF also handles many tags in a short time, making it suitable for high-throughput airport operations.

Q4: Does RFID baggage tracking satisfy IATA Resolution 753?

Yes. IATA Resolution 753 requires airlines to track baggage at four core checkpoints: check-in, aircraft loading, transfer and arrival. RFID is the most efficient and accurate way to capture data at all four points automatically. Wuhan Tianhe Airport’s system is specifically designed to meet IATA 753 data node requirements.

Q5: Why did Wuhan Airport abandon reusable RFID cards?

Reusable IC-type RFID cards proved too fragile in baggage operations. The cards were bent and crushed by suitcases, with a reported 15% damage rate. In addition, the airport lacked testing equipment to screen non-compliant chips, and manual encoding by check-in staff caused data errors. The shift to lower-cost disposable RFID luggage tags solved all three problems: the flexible tags handle mechanical stress better, quality control is easier, and the print-and-encode process reduces human error.

Q6: How much does an RFID baggage tracking system cost?

Costs depend on the number of counters, the scale of the baggage system, the number of reading points and the software platform selected. The largest variable is the price of the individual RFID tags, which has dropped dramatically over the past decade. A thorough cost-benefit analysis should include savings from reduced baggage mishandling penalties, faster aircraft turnaround and lower manual labour requirements.

Q7: What should airport buyers look for when selecting an RFID tag supplier?

Buyers should evaluate the supplier’s ability to deliver a mechanically robust tag that can survive baggage handling, a chip with reliable sensitivity, adhesive performance across temperature ranges, and consistent printability. More importantly, the supplier must be able to perform full quality testing of incoming chips and reject out-of-spec components before they enter production. Wuhan’s early IC card issues underline the importance of rigorous supply-chain quality control.

Q8: How does RFID baggage tracking improve the passenger experience?

Passengers receive two direct benefits. First, they can track their baggage in real time via airline applications or airport displays, which reduces anxiety about lost bags. Second, when a bag is misrouted, airport staff can locate it quickly using handheld RFID readers, reducing the recovery time from days to hours. The overall result is less stress, fewer lost-bag claims and a more transparent travel experience.

10. Conclusion

Wuhan Tianhe Airport’s evolution from reusable IC-type RFID cards to a full-process RFID baggage tracking platform is an instructive case study for airports worldwide. The airport’s decision to move to disposable UHF RFID luggage tags eliminated the reliability problems of reusable cards, and the progressive rollout of fixed workstations, wearable readers and a cloud data platform delivered measurable improvements in sorting accuracy, operational efficiency and passenger satisfaction.

For airports, airlines and ground handlers planning similar deployments, the lessons from Wuhan are clear: select tags engineered for the harsh handling environment, design read zones carefully, enforce strict quality control, integrate data through standardised platforms, and always test real-world performance before commissioning. By following these principles, an airport can achieve the same level of baggage visibility that Wuhan Tianhe Airport now provides—and take another significant step toward the smarter, more connected airports of the future.
